Product Specifications

Weight & Dimensions
Weight & Dimensions
Weight

8.5 lbs (some versions list 22 lbs).

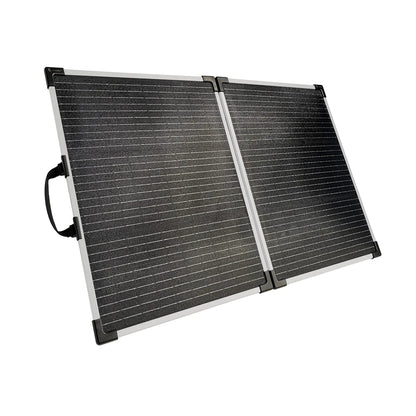

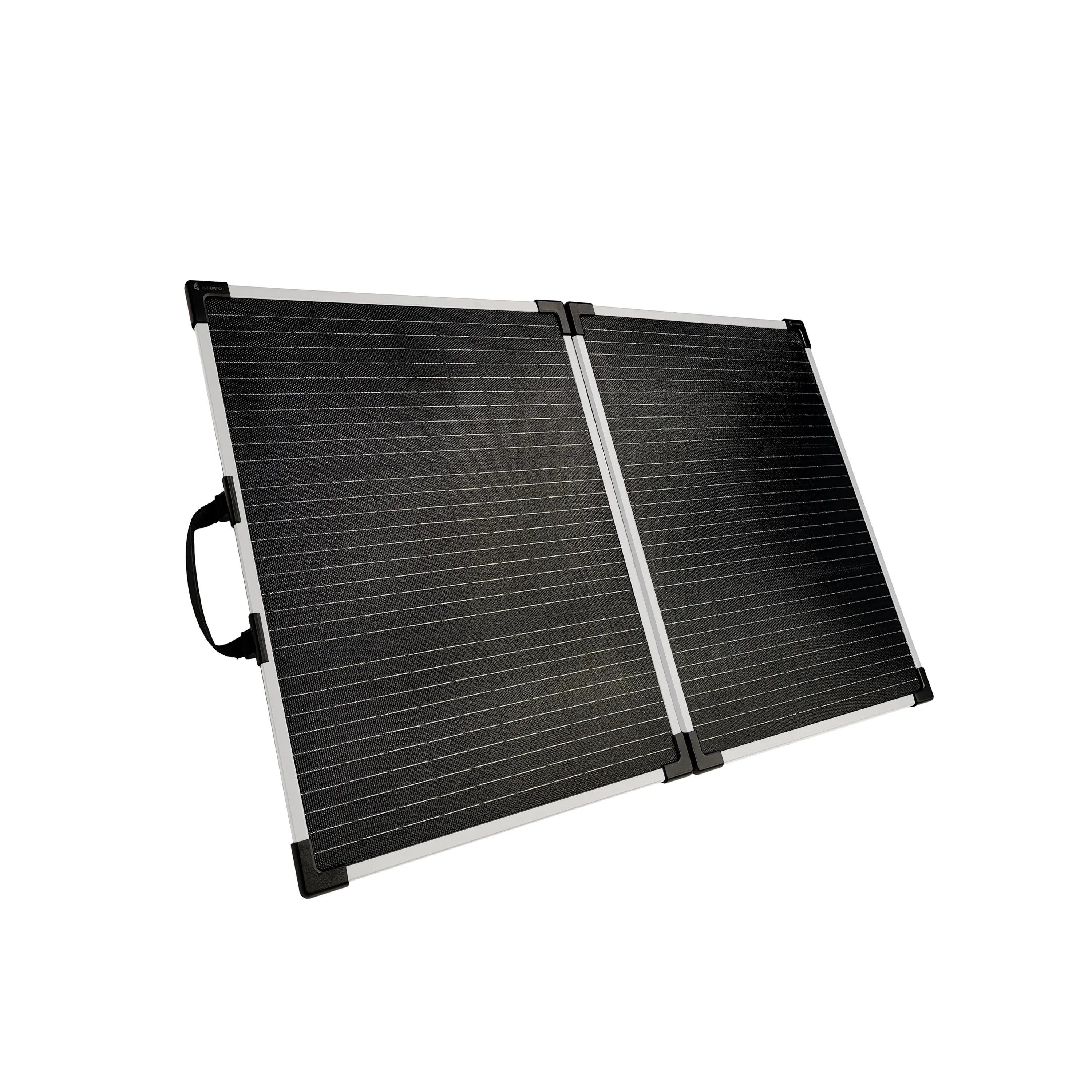

Dimensions (Unfolded)

23.5″ × 40 7/8″ × 0.75″ or 26.5″ × 40″ × 1″.

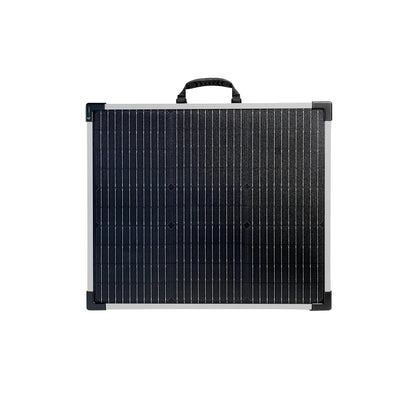

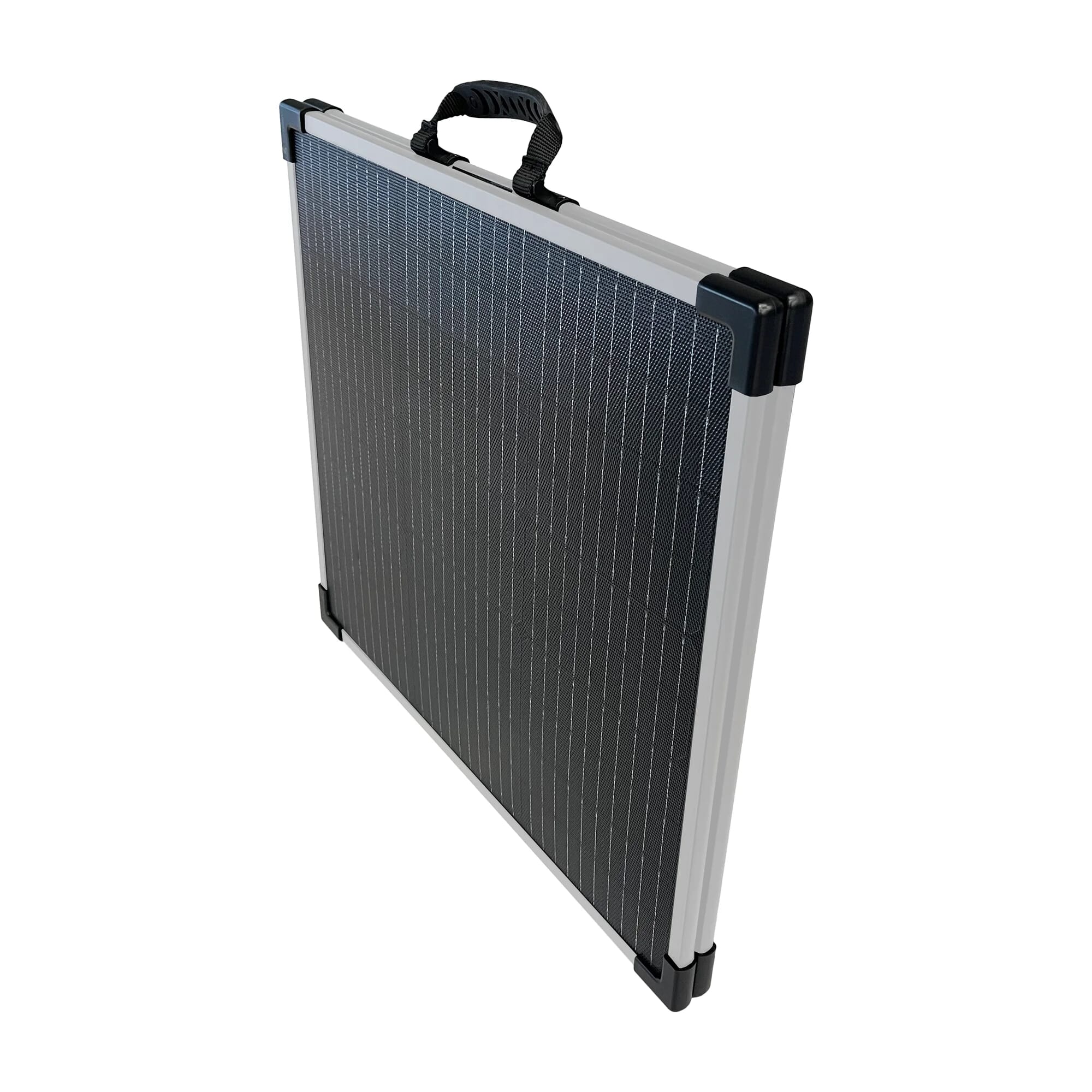

Dimensions (Folded)

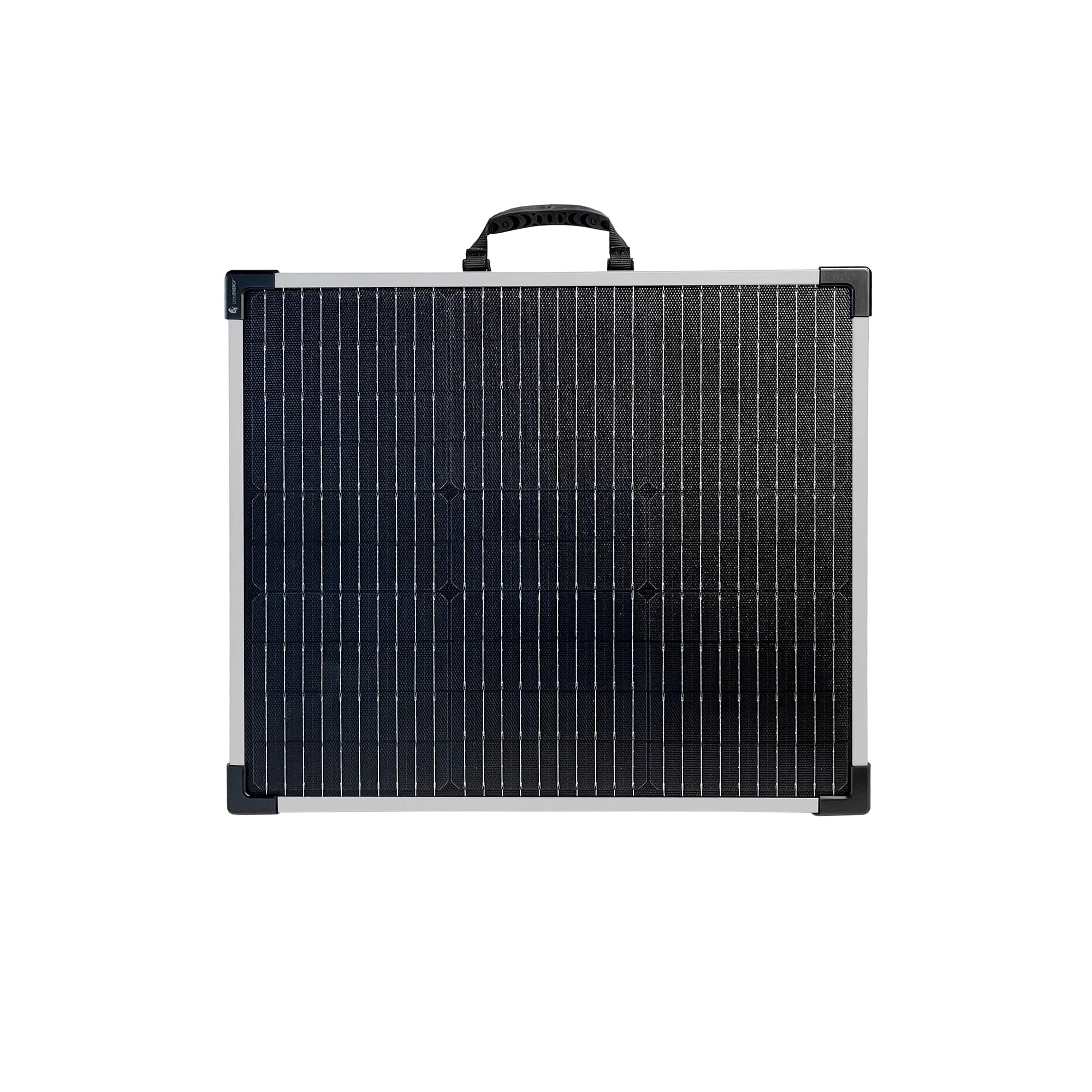

23.5″ × 20 7/16″ × 1.5″ or 26.5″ × 20″ × 2″.

Power Output & Ratings
Power Output & Ratings
Rated Power

100W / 12V @ 5.84A.

Max Output

18V @ 5.56A.

Short-Circuit Current (ISC)

6.14A.

Open Circuit Voltage (VOC)

20.52V.

Max Power Point (Impp/Vmpp)

5.84A @ 17.1V.

Builds & Materials
Builds & Materials
Panel Type

Monocrystalline solar cells.

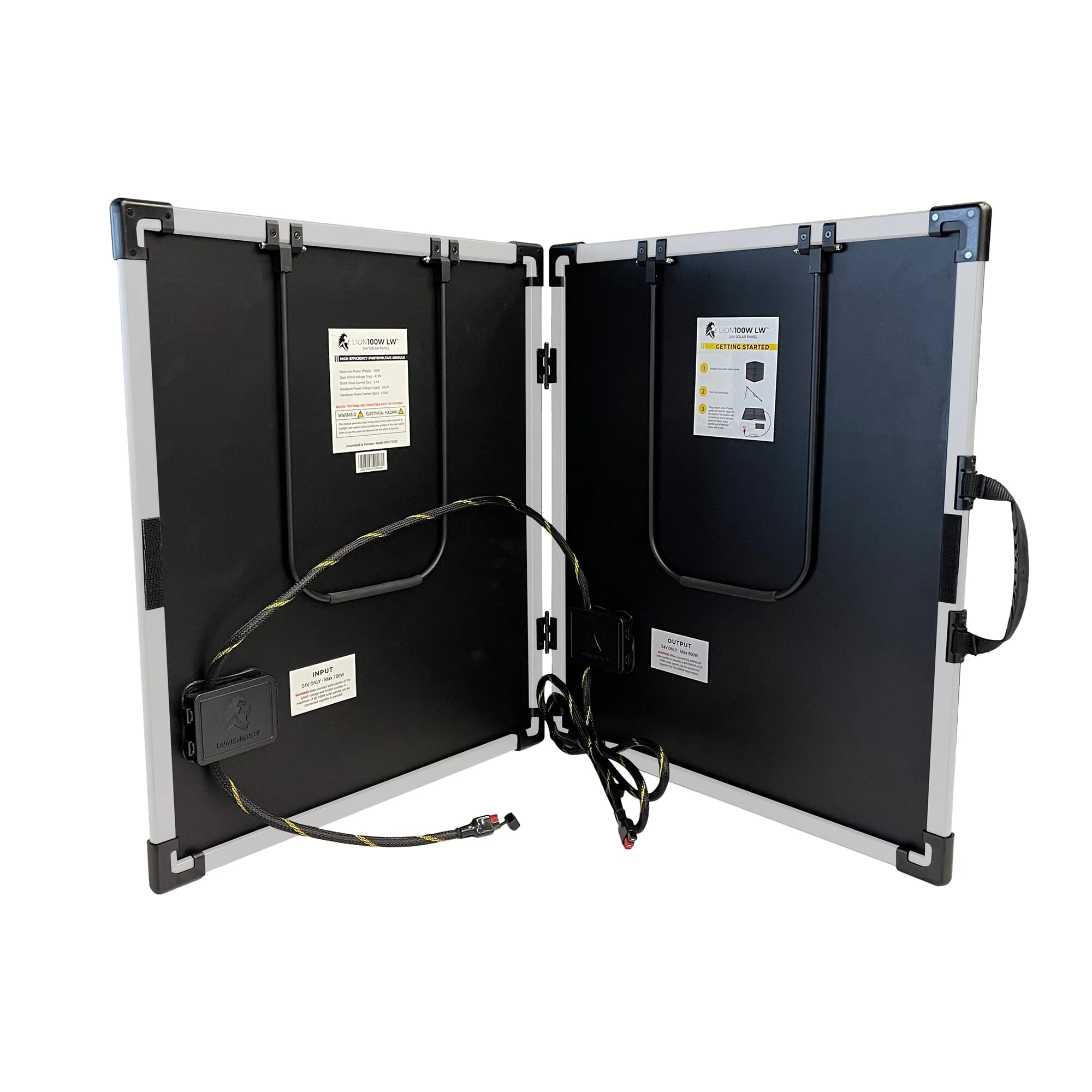

Construction

Durable folding panel with protective casing for field use.

Connection & Expansion
Connection & Expansion
Expandable

Can link up to 4 panels for increased output.

Use Case

Connects to Lion Energy solar generators and power banks.

Warranty & Lifespan
Warranty & Lifespan
Warranty

5 years (some variants specify 1 year).

Life Cycles

Rated for 20 years of solar output performance.

Included in the Box

  • 1x User Manual

  • 1x Solar Panel 100W 12V

HARNESS THE SUN

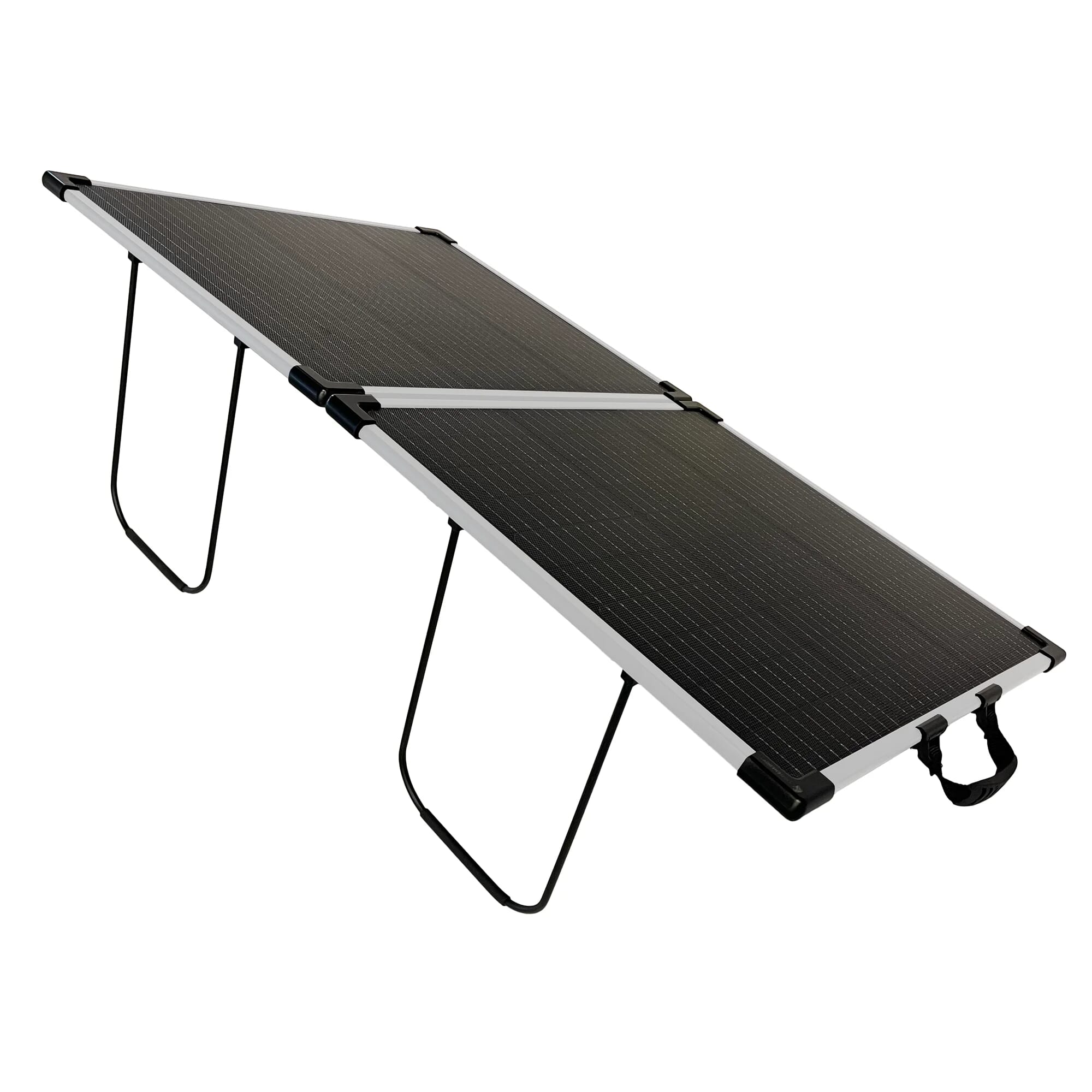

Lion 100W 12V solar panels are designed to recharge power units, like the Safari, by harnessing the power of the sun to power your devices – anywhere. They come with adjustable legs so you can set them up on the ground and point them to the sun or mount them on top of your roof, shed, RV, or camper van.

BUILT TO LAST, DAY AFTER DAY

Weighing in at 8.5 lbs, the Lion 100W 12V solar panel makes for an easy choice to extent your camping trip a few more days because you now have the power you need and you can take it with you. These panels are perfect to power the Safari in a wide range of settings – tailgating, construction site, camping, or wherever you are. You can bundle and save more when you purchase one of our kits.
