Product Specifications

Weight & DimensionsWeight & Dimensions
Weight

25.5 lbs.

Dimensions

10.2″ × 6.6″ × 8.8″ (up to 9.8″ with battery posts).

Battery & CapacityBattery & Capacity
Battery Chemistry

Lithium Iron Phosphate (LiFePO₄), Prismatic Cell.

Battery Capacity

1,344Wh / 105Ah.

Life Cycles

3,500+ at 100% Depth of Discharge (DOD).

Charge Retention

Up to 2 years without use.

Performance & OutputPerformance & Output
Continuous Discharge

150A continuous output.

Operating Temperature

−4°F to 131°F.

Series / Parallel Configurations

12V to 48V / 105Ah to 420Ah.

Lighting & IndicatorsLighting & Indicators
LED Indicators

1–5 LEDs show remaining battery level from 10% to 100%.

Internal Heater

Heats battery using 5A draw to maintain optimal charge temps.

Bluetooth® Compatibility

Monitor battery status from your mobile device.

Charging SpecificationsCharging Specifications
Recommended Charging Voltage

13.9V – 14.6V.

Maximum Charge Rate

Up to 100A.

Estimated Charging Times

1A: 105 hrs / 5A: 21 hrs / 10A: 10.5 hrs / 20A: 5.25 hrs / 50A: 2.1 hrs / 100A: 1.05 hrs.

Charging Temperature

32°F to 113°F (with internal heater).

Safety & ProtectionSafety & Protection
Reset Functions

Quick press to reset low voltage; press and hold to reset short circuit or high temp cutoff.

Winter Usage

Internal heater enables safe cold-weather charging; keep in insulated or climate-controlled area.

Mounting Tips

Finger-tighten posts, snug with wrench. Use 3/8″ eyelet connectors.

Included in the Box

  • 1x Lion UT 1300 BT-H

  • 1x User Manual

  • 1x 3LED Light Bulbs

STORE POWER. RECHARGE FAST. REPEAT.

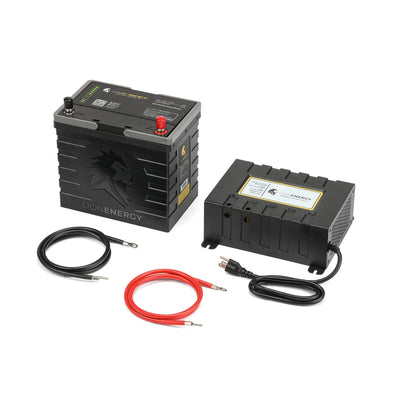

This kit gives you lightweight, cold-weather-ready power for camping, overlanding, backup, or job sites—plus a fast 45-amp charger to get you back up and running in just hours. Monitor your battery from your phone, skip maintenance, and spend more time using your power instead of waiting on it.

EXPANDABLE FOR MORE POWER

One Safari UT 1300 BT-H has 150A continuously and a 900A peak discharge. If you need more, you can connect multiple batteries in parallel or in series to get even more energy storage and power.
