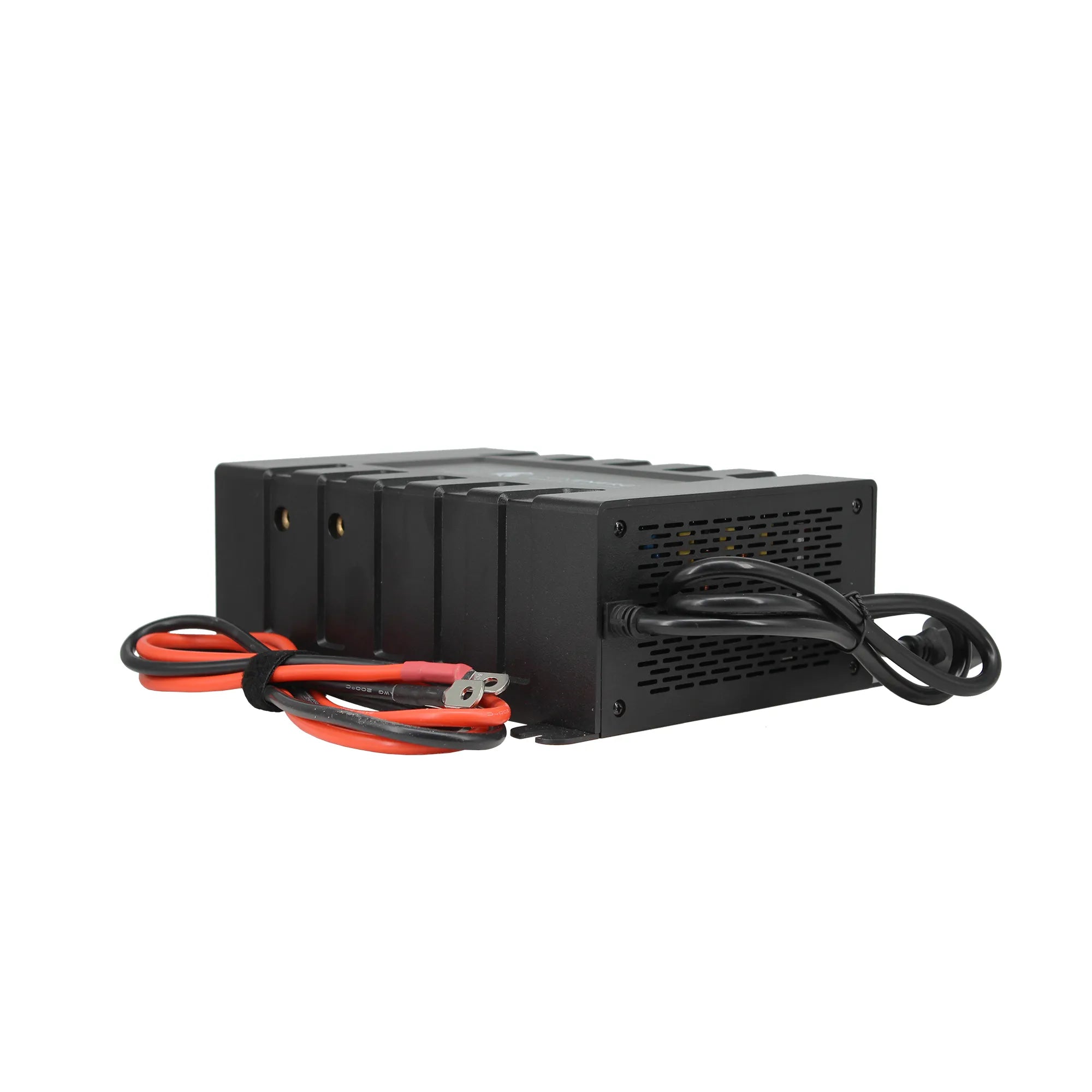

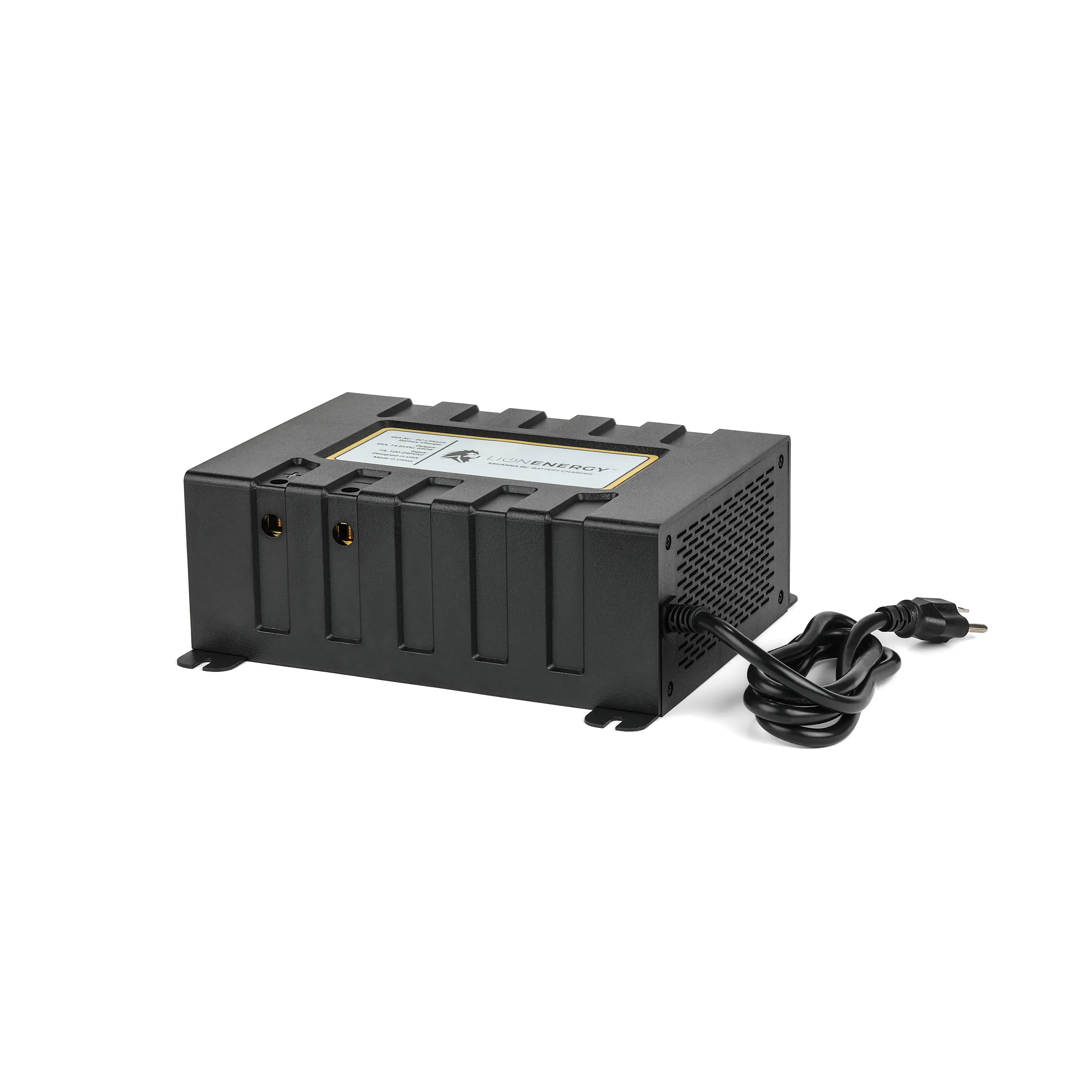

Savanna 45A Battery Charger

50170178
$199
The discount code will be applied on checkout.

Built to charge large batteries quickly, this lithium / LFP / LiFePO4 charger will charge any lithium battery at a rate of 45 amps. Lion Energy has optimized this charger for use with our lithium iron phosphate batteries (LiFePO4 or LFP). Not recommended for charging lead acid or SLA batteries, it is too powerful. This charger is rated at 45 amps and will charge a Lion Energy UT 1300 105 Ah battery in 2.4 hours or our UT700 56 Ah in 1.3 hours. All 12 volt Lion Energy lithium batteries should be charged using a LiFePO4 compatible charger like this one. SLA chargers will reduce the performance and lifespan of the battery.

Specifications

FOR 12 VOLT LITHIUM BATTERIES
We highly recommend you use a LiFePO4 compatible charger. 12v chargers for lead acid batteries may work, but will decrease performance and lifespan of the battery.

INPUT VOLTAGE RANGE:
INPUT 100-240VAC

INPUT AMPS:
6A

OPERTATING TEMPERATURE:
14F – 104F

WEIGHT:
4Lbs

OUTPUT VOLTAGE:
14.6 VDC

OUTPUT AMPS:
45A

DIMENSIONS:

10.07” X 7.08” X 3.75”

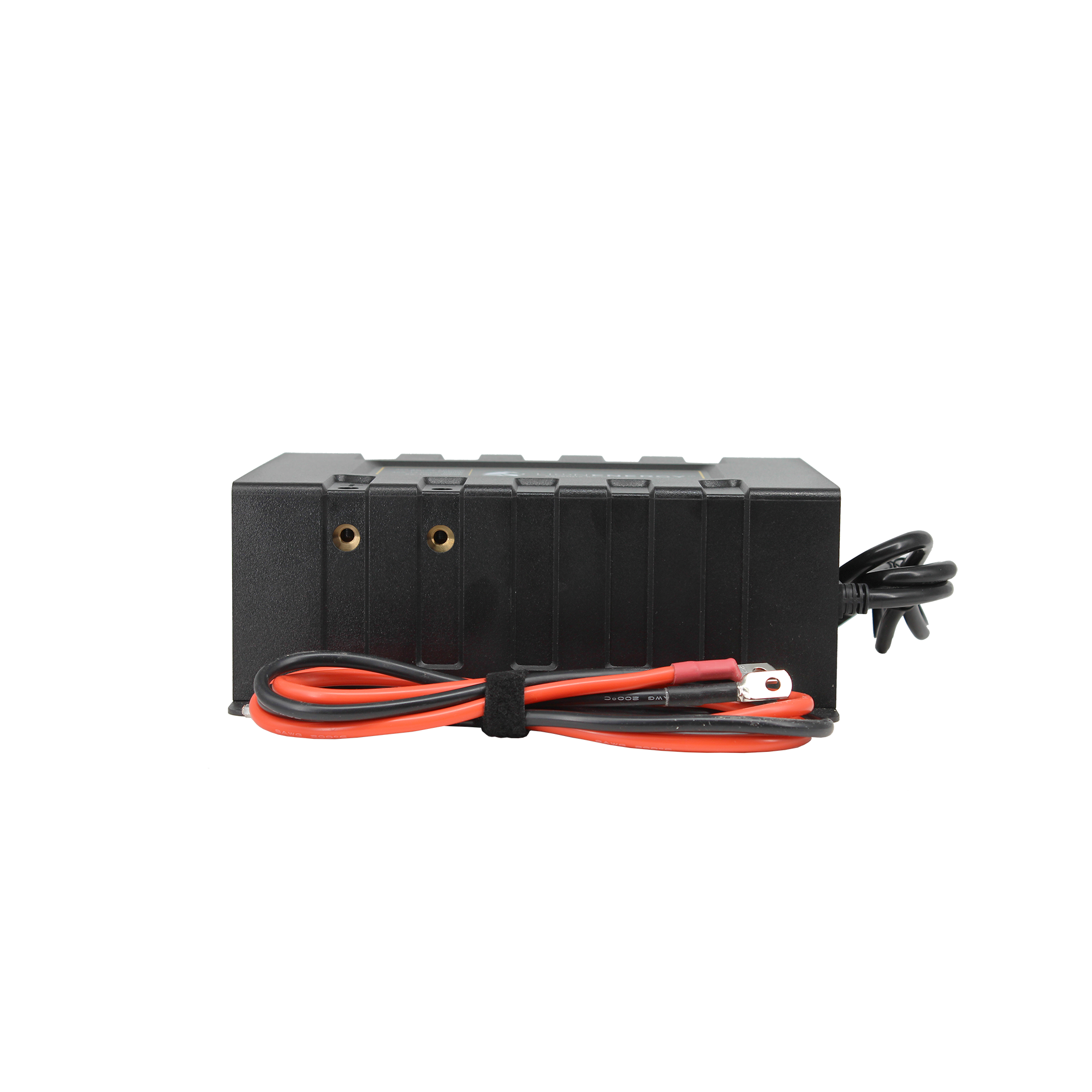

TERMINAL CONNECTIONS

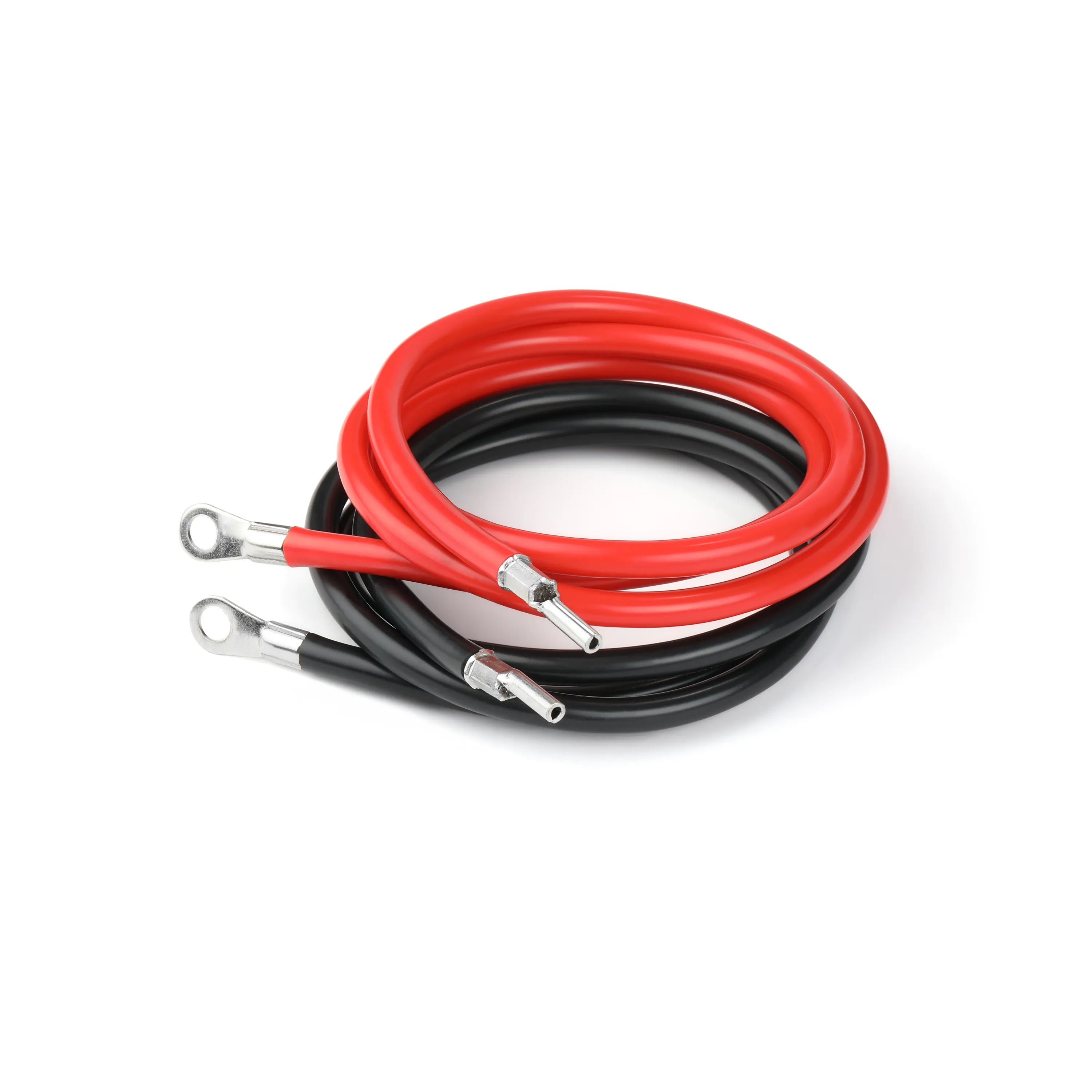

Cable connections make it easy to connect your charger to the battery. Install the ring terminals using the bolts on your terminals. Bolt black to your black terminal. Red to your red terminal. Do not short circuit.

SMART BMS COMMUNICATION
Charger will restart or "wake up" a Lion Energy BMS that has turned off a battery due to short circuit or excessive amp draw. Simply connect the charger to the battery to initiate a restart.

HOW FAST WILL MY BATTERY CHARGE?
Charges at a rate of 45 amps. To determine your charging speed take the amp hour rating of your battery and divide by 45. For example, a 105 amp hour battery (Ah) would charge in 2.3 hours.

WHAT VOLTAGE SHOULD LIFEPO4 BATTERIES BE CHARGED AT?
14.6 volts is recommended for Lion Energy Lithium (LiFePO4) batteries. This charger charges at 14.6 volts.

SUITABLE FOR:

* Charging 12V Batteries
* Charges at a rate of 45 Amps
* Optimimal for 50Ah, 100Ah, and 200Ah
* Compatible with all 12v Lion Energy batteries that are     50Ah and bigger
* LIFEPO4 Comptable Charger
